ECE discovery project

Section 1: Initial Idea

The goal was to design and build a small, autonomously controlled differential drive robot car from the ground up. This project served as an introduction to integrating microcontrollers with physical hardware and power systems.

Required Materials

• 2x 12VDC Motors: For the differential drive system.
• Raspberry Pi: The brain of the operation, handling autonomous logic.
• H-Bridge Motor Controller: To interface the low-voltage RPi signals with the high-voltage motors.
• USB-C Breakout: For clean power delivery to the Raspberry Pi.

Manufacturing

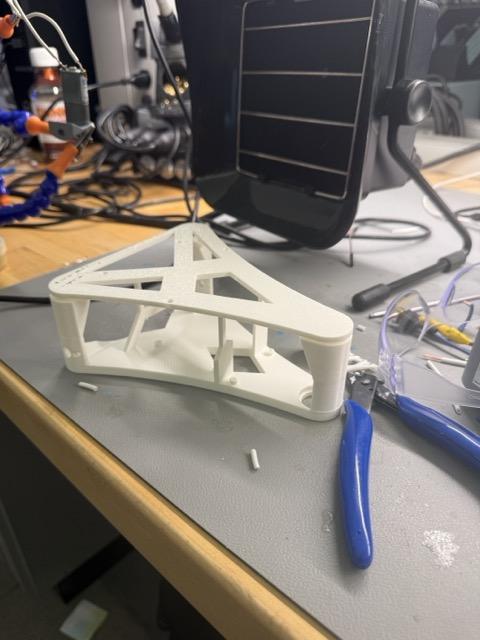

The entire chassis was designed for 3D printing, allowing for rapid prototyping and custom internal mounting points.

Section 2: CAD Modelling

The design followed a clamshell approach, with the goal of packaging all electronics, including the Raspberry Pi, motor controller, and wiring, securely within the chassis for a clean, professional look.

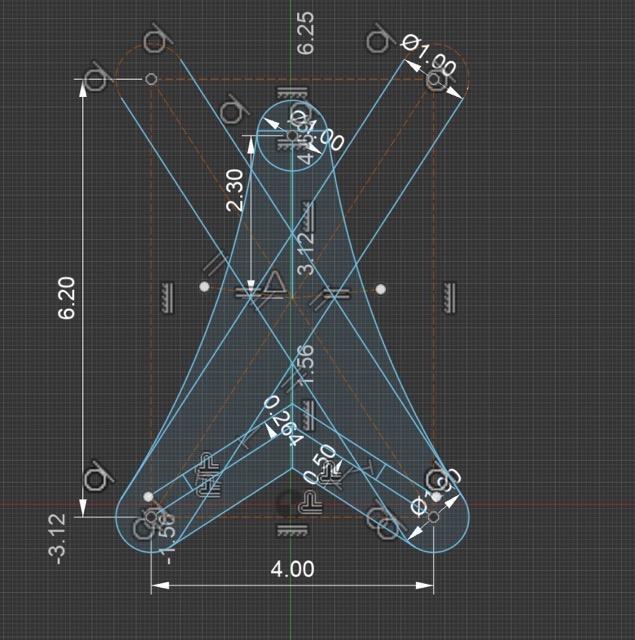

This was the initial sketch for the chassis, I wanted to make the robot as compact as possible, so the robot dimensions are on the smaller side

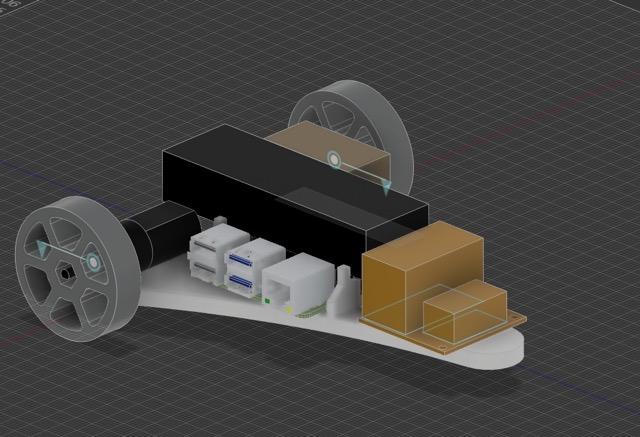

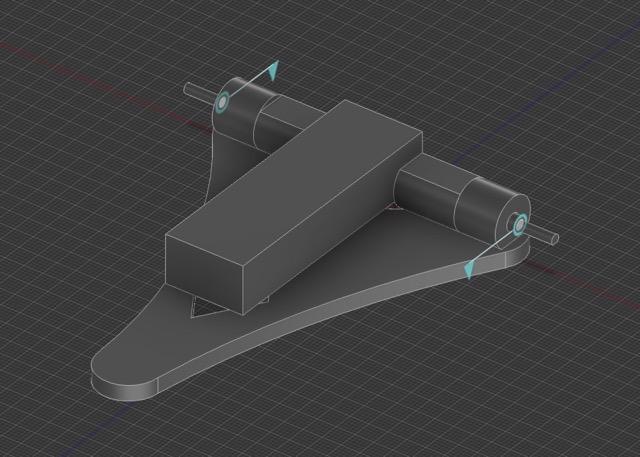

I measured the components that the robot would use and packaged it in the CAD, ensuring that the assembly process would go smoothly. During this stage, I also added screws to secure all the electronics.

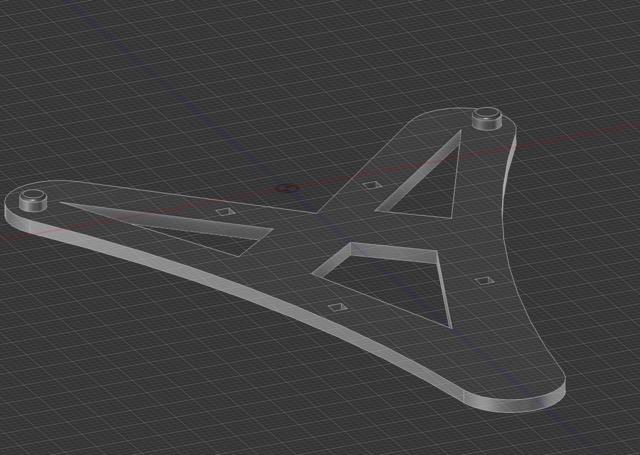

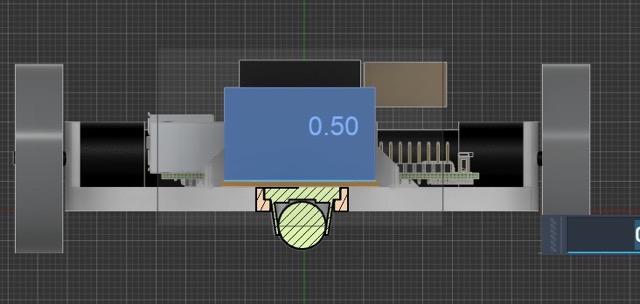

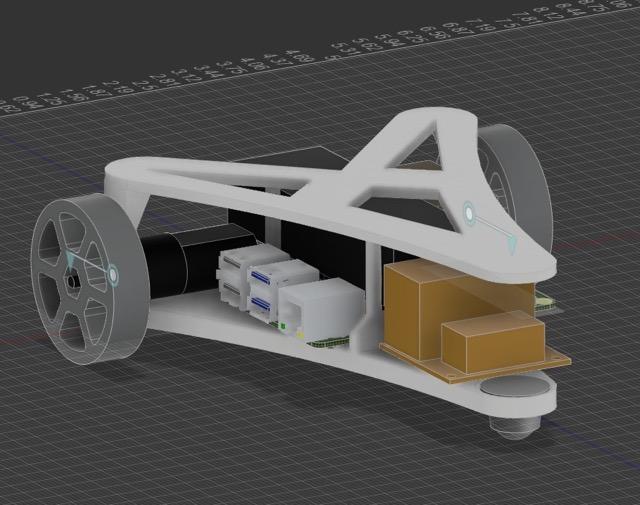

Some smaller details, like the marble at the front of the robot and the top cover with custom slots to snap together with the bottom section.

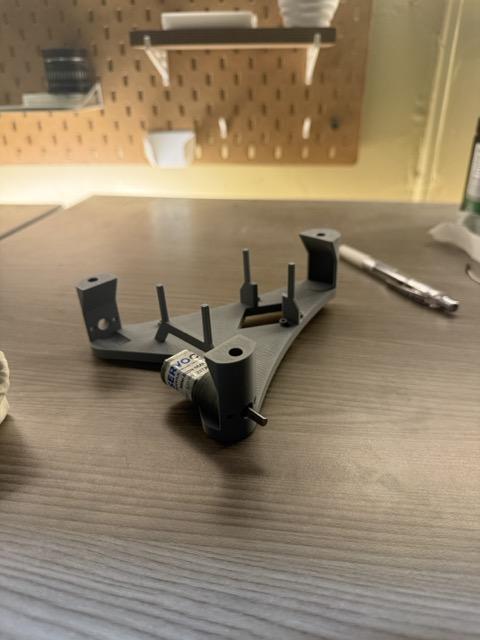

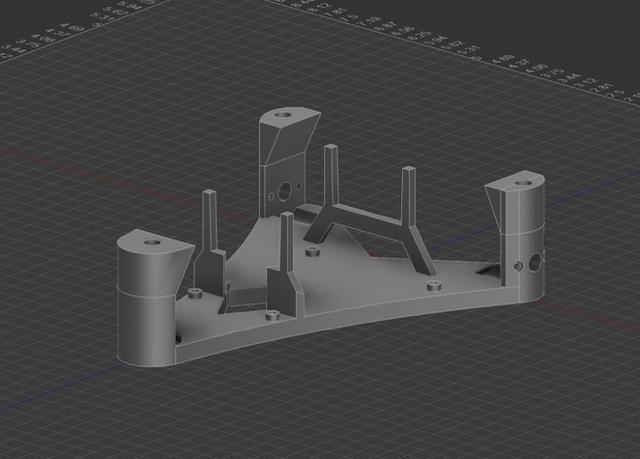

The final chassis design, with center struts to elevate the battery, and small standoffs to mount the motor controller and Raspberry Pi.

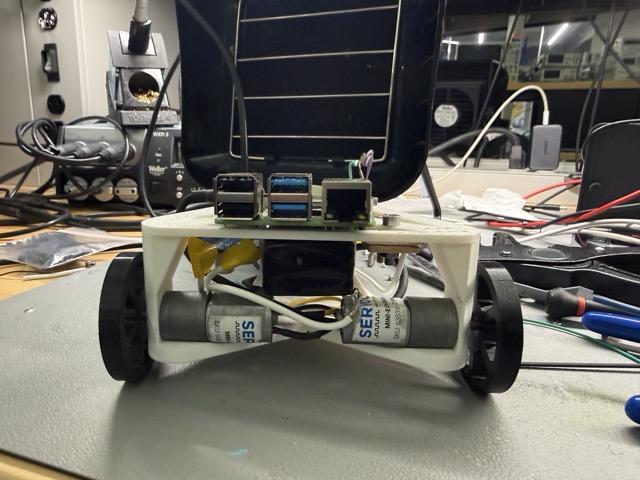

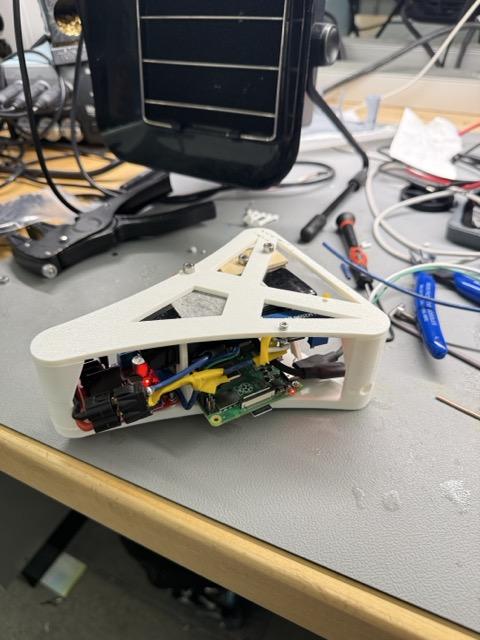

Section 3: Assembling Physical Design

The assembly process revealed several critical engineering challenges that required on-the-fly modifications.

Key Issues & Solutions

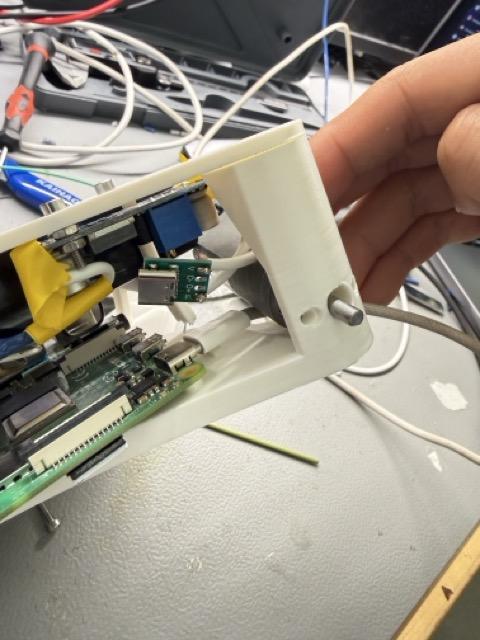

GPIO Clearance: Forgot to account for the height of the GPIO pins and cables when designing the top cover, requiring chassis adjustments as the original design was too short

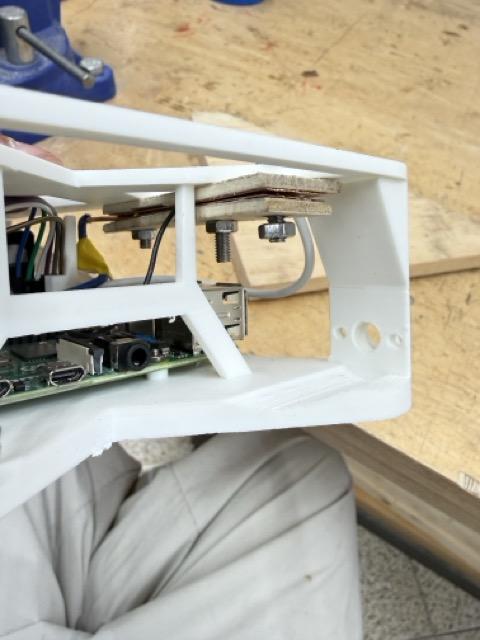

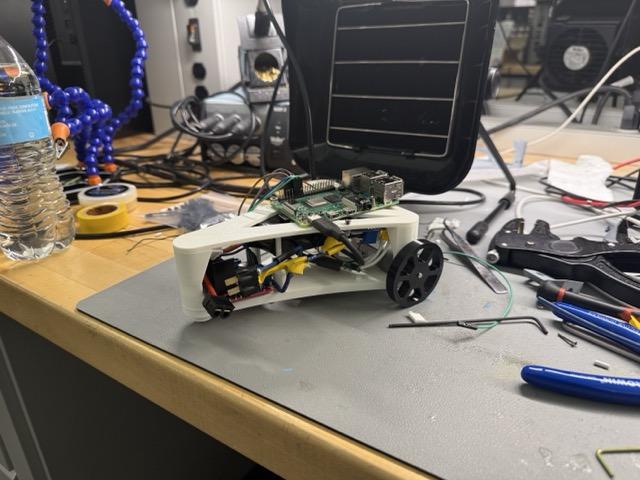

The old design compared to the new design, notice how the top section is raised higher to account for the extra height.

Voltage Management: Initially overlooked the necessity of managing 12V for motors vs 5V for the RPi, leading to a more complex power distribution system.

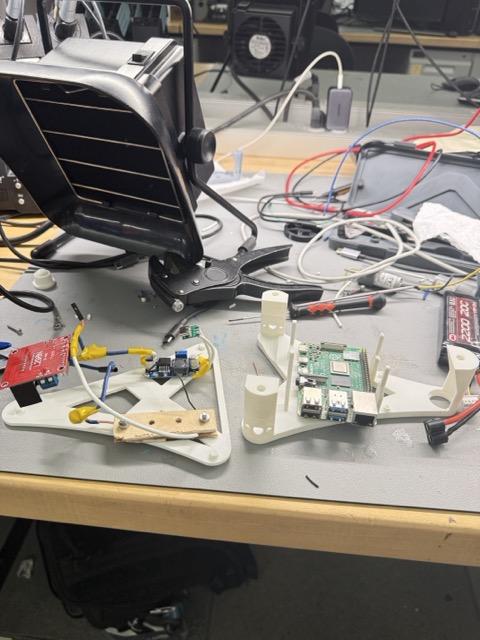

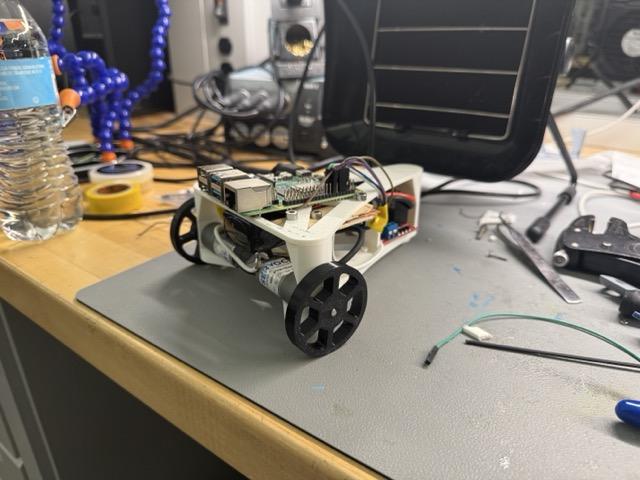

The full power distribution system can be seen here: the 11.1V LiPo feeds directly into the motor controller for the motors, while also stepping down through a buck converter to 5V to power the Raspberry Pi through a USB-C breakout. All grounds are tied together through a central node to maintain a common reference between the Pi and the motor driver.

• Grounding Loops: Encountered issues with grounding everything together across different power rails. Initially, I treated different terminals as implicitly connected, which caused inconsistent behavior and made debugging difficult.

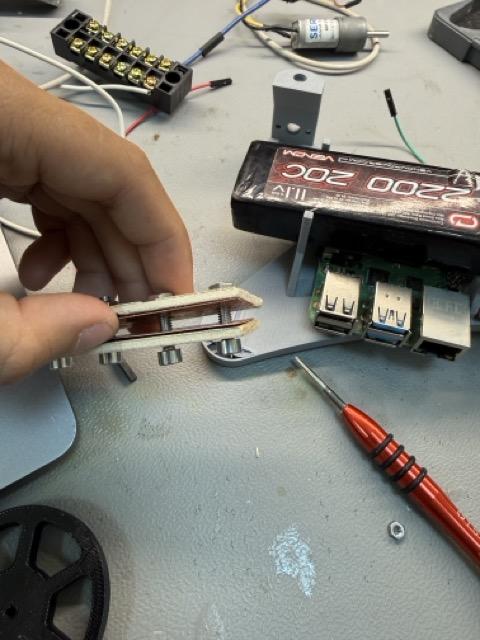

• Custom Bus Bar: To resolve the grounding and power distribution issues, I made a custom bus bar to centralize connections. This allowed all grounds (battery, motor driver, and Raspberry Pi) to share a single reference point without forcing high motor current through thin signal wires.

Software Implementation

To control the robot, I developed a Python-based drivetrain controller that handles motor PWM signals and implements basic trapezoidal velocity profiling for smooth movement.

drivetrain.py

import RPi.GPIO as GPIO
import time
from typing import NamedTuple


class MotorPins(NamedTuple):
    enable: int
    in1: int
    in2: int


class Drivetrain:
    def __init__(self, leftPins: MotorPins, rightPins: MotorPins, ldir: int, rdir: int) -> None:
        self.left: MotorPins = leftPins
        self.right: MotorPins = rightPins
        self.pwmA: GPIO.PWM = GPIO.PWM(self.left.enable, 1000)
        self.pwmB: GPIO.PWM = GPIO.PWM(self.right.enable, 1000)
        self.ldir: int = ldir
        self.rdir: int = rdir
        self.pwmA.start(0)
        self.pwmB.start(0)


    def spin(self, speeds: tuple[float, float]) -> None:
        ldir = bool((1 if speeds[0] > 0  else 0) * self.ldir)
        rdir = bool((1 if speeds[1] > 0  else 0) * self.rdir)
        GPIO.output(self.left.in1, ldir)
        GPIO.output(self.left.in2, ldir)
        GPIO.output(self.right.in1, rdir)
        GPIO.output(self.right.in2, rdir)
        self.pwmA.ChangeDutyCycle(speeds[0])
        self.pwmB.ChangeDutyCycle(speeds[1])

    #drive train controller truncated

main.py

from drivetrain import *
import time


ENA = 17
IN1 = 27
IN2 = 22

ENB = 23
IN3 = 24
IN4 = 25
BUTTON_PIN = 17


GPIO.setmode(GPIO.BCM)
GPIO.setup(BUTTON_PIN, GPIO.IN)


dt = Drivetrain(
    MotorPins(ENA, IN1, IN2),
    MotorPins(ENB,IN3,IN4),
    1,
    1
)

dtc = DrivetrainController(dt)

def run(channel):
    dtc.profiled_drive(1000)

try:
    GPIO.add_event_detect(
        BUTTON_PIN,
        GPIO.FALLING,
        callback = run,
        bouncetime = 200
    )
    while True:
        time.sleep(0.01)
finally:
    dt.spin((0,0))
    GPIO.cleanup()
